Chromatic aberration, often referred to as "color fringing," is a pervasive optical phenomenon that impacts the clarity and fidelity of images produced by lenses. This defect arises from the fundamental principle that the refractive index of a material, such as glass, varies with the wavelength (color) of light passing through it. Consequently, different colors of light are bent at slightly different angles and, therefore, focus at distinct points along the optical axis, leading to a noticeable blurring or colored outlines around objects in an image.
Understanding chromatic aberration is crucial for anyone involved in optics, from lens design and manufacturing to photography, microscopy, and astronomy. Its presence can degrade image quality, reduce contrast, and introduce unwanted color shifts, necessitating sophisticated correction techniques both in optical design and post-processing. This comprehensive guide delves into the intricate physics behind this phenomenon, explores its various manifestations, and outlines the advanced methods employed to mitigate its effects, ensuring optimal visual performance across diverse applications.
Introduction to Chromatic Aberration
Chromatic aberration is an inherent optical defect that occurs when a lens fails to focus all wavelengths of light at the same point. This phenomenon is a direct consequence of the dispersion of light, a property where the speed of light, and thus the refractive index, varies depending on its wavelength. As white light, which comprises a spectrum of colors, passes through a lens, each color component is refracted at a slightly different angle.
The result is that blue light, having a shorter wavelength, is bent more strongly than red light, which has a longer wavelength. This differential refraction causes blue light to come to a focus closer to the lens than red light. Instead of a single, sharp image, the lens produces a series of slightly offset images, one for each color present in the incident light. This optical imperfection is particularly noticeable in high-contrast areas of an image, manifesting as colored fringes or halos.
Visual representation of optical phenomena, illustrating how different wavelengths of light refract uniquely through a lens, leading to color separation.
The Physics of Dispersion: Why Colors Separate
The fundamental cause of chromatic aberration lies in the physical property of dispersion. When light travels through a medium, its speed is reduced, and this reduction is quantified by the refractive index of the material. A critical aspect of dispersion is that the refractive index is not constant across all wavelengths of light. For most transparent materials, the refractive index is higher for shorter wavelengths (blue/violet light) and lower for longer wavelengths (red light).
This means that blue light slows down more and bends more sharply than red light when entering a lens. Consequently, the focal length of a lens, which is dependent on the refractive index and the geometry of its surfaces, becomes different for each color. This variation in focal length for different colors is the direct physical basis for chromatic aberration. The phenomenon is governed by Snell's Law and the material's specific dispersion curve.
The degree of dispersion in a material is often characterized by its Abbe number (V-number). Materials with a high Abbe number exhibit low dispersion, meaning their refractive index changes less across the visible spectrum, making them ideal for optical elements where chromatic aberration needs to be minimized. Conversely, materials with low Abbe numbers show high dispersion and are more prone to causing chromatic aberration.
Types of Chromatic Aberration
Chromatic aberration manifests in two primary forms, each with distinct visual characteristics and implications for image quality. Understanding these types is essential for both optical design and the effective correction of image defects.
Longitudinal Chromatic Aberration (Axial CA)
Longitudinal chromatic aberration, also known as axial or axial color, occurs when different wavelengths of light focus at different distances along the optical axis. This means that if you focus a lens for red light, blue light might be slightly out of focus, and vice versa. It is most noticeable in the center of the image and appears as colored fringes around objects, particularly in high-contrast transitions between bright and dark areas.
The effect is often described as a "blur" of color, where the edges of objects appear to have a soft, colored halo. For instance, a white object against a black background might show a red fringe on one side and a blue/green fringe on the other, depending on which color is in focus. This type of aberration is independent of the field of view and affects the entire image uniformly in terms of focus.
Lateral Chromatic Aberration (Transverse CA)
Lateral chromatic aberration, also called transverse chromatic aberration, occurs when different wavelengths of light focus at different magnifications. This leads to different colors of light forming images of varying sizes. As a result, the images for different colors are not only focused at different points but are also displaced relative to each other in the image plane.

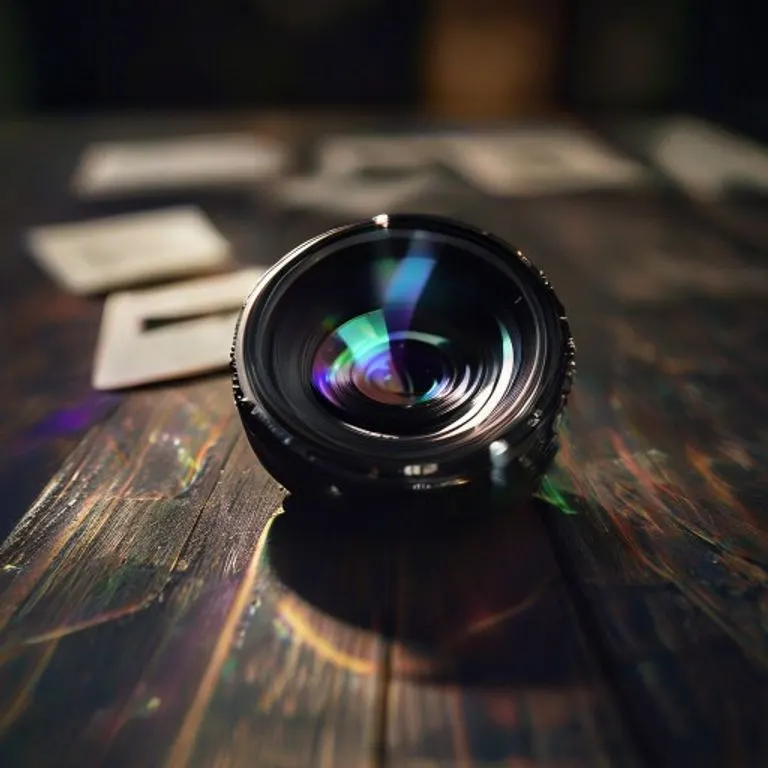

An antique lens, showcasing the subtle yet noticeable optical defects that can arise from chromatic aberration, particularly in older optical designs.
Lateral CA is most prominent towards the edges of the image frame and appears as color fringes that increase in intensity further from the center. Unlike longitudinal CA, lateral CA does not affect the sharpness of the image but rather its color registration. A common manifestation is purple or green fringing along high-contrast edges, which can be particularly distracting in photography. The "SMC multilayer system" mentioned in the original context likely refers to coatings designed to reduce reflections and improve color fidelity, which can indirectly help in managing lateral CA by reducing stray light that might exacerbate the effect.
Visual Manifestations and Impact
The visual impact of chromatic aberration can range from subtle to severely distracting, depending on the lens quality, aperture, focal length, and the scene being captured. In general, it presents as unwanted color fringes or halos around high-contrast edges, such as tree branches against a bright sky, or text on a white background.
- Purple Fringing: Often seen with lateral CA, especially in digital photography, where blue and red light are displaced.
- Green Fringing: Also common, typically paired with purple fringing, indicating the separation of green light from other colors.
- Softness/Blur: Longitudinal CA can lead to a general lack of sharpness, as not all colors are perfectly in focus simultaneously.
- Reduced Contrast: The spreading of colors reduces the overall contrast of the image, making it appear less sharp and vibrant.
- Color Shifts: In extreme cases, the entire color balance of an image can be affected, leading to unnatural hues.
The severity of chromatic aberration is often exacerbated by wide apertures and telephoto focal lengths. Additionally, not using a lens hood can increase the likelihood of stray light entering the lens, which can scatter internally and worsen the appearance of color fringing, although it doesn't directly cause the aberration itself. This makes the use of lens hoods a practical, albeit indirect, mitigation strategy for photographers.
Measurement and Quantification
Quantifying chromatic aberration is essential for lens designers and optical engineers to evaluate and improve lens performance. Several methods and metrics are used to measure both longitudinal and lateral CA. These measurements typically involve analyzing the focal points or image positions of different wavelengths of light.
- Focal Shift Measurement: For longitudinal CA, the most direct method involves measuring the focal length for specific wavelengths (e.g., red, green, blue) and calculating the difference between these focal points.
- Modulation Transfer Function (MTF): While MTF primarily measures sharpness and contrast, it can indirectly reveal chromatic aberration by showing a decrease in performance across different colors or at different field positions.
- Image Analysis Software: Specialized software can analyze captured images of test charts (e.g., slanted edge targets) to detect and quantify the extent of color fringing, providing precise pixel-level data on lateral CA.
- Optical Bench Testing: In a laboratory setting, optical benches are used to precisely measure the path of light rays and their convergence points for various wavelengths, offering highly accurate data on both types of CA.
The results of these measurements guide lens designers in selecting appropriate glass types and lens configurations to minimize chromatic aberration. The goal is to create a lens system where the focal points and magnifications for key wavelengths are as closely aligned as possible.
Correction and Mitigation Techniques
Over centuries, optical engineers have developed ingenious methods to counteract chromatic aberration, ranging from sophisticated lens designs to advanced materials and digital processing. These techniques aim to bring different wavelengths of light to a common focus or to correct their lateral displacement.
Achromatic Lenses
The most common and cost-effective method for correcting chromatic aberration is the use of achromatic lenses, or achromats. An achromat typically consists of two lens elements, usually a convex lens made of crown glass (low dispersion) cemented to a concave lens made of flint glass (high dispersion). By carefully selecting the types of glass and their curvatures, it's possible to bring two specific wavelengths (e.g., red and blue) to the same focal point, significantly reducing longitudinal CA.
Apochromatic Lenses
For applications requiring even higher levels of chromatic correction, apochromatic lenses (apochromats) are employed. These lenses typically use three or more elements, often incorporating special low-dispersion (ED - Extra-low Dispersion) or fluorite glass elements. Apochromats are designed to bring three different wavelengths (e.g., red, green, and blue) to a common focus, resulting in a much superior correction of both longitudinal and lateral CA compared to achromats.
Superachromatic Lenses
Pushing the boundaries further, superachromatic lenses aim to bring four or more wavelengths to a common focus. These highly complex designs utilize multiple exotic glass types and are extremely expensive to manufacture. They are typically reserved for the most demanding scientific and astronomical instruments where absolute color fidelity is paramount.
Diffractive Optics
Diffractive optical elements (DOEs) offer an alternative approach to chromatic correction. Unlike refractive lenses, DOEs exhibit negative dispersion, meaning they bend shorter wavelengths less than longer ones. By combining a diffractive element with a conventional refractive lens, it's possible to effectively cancel out chromatic aberration, leading to lighter and more compact lens designs, particularly in telephoto lenses.
An abstract depiction of the optical physics involved in light refraction and dispersion, highlighting the challenge of uniting all colors at a single focal point.
Digital Correction
With the advent of digital imaging and powerful image processing software, digital correction has become a prevalent method for mitigating chromatic aberration, especially lateral CA. Many modern cameras and post-processing applications (e.g., Adobe Lightroom, Photoshop) have built-in lens profiles that can automatically detect and correct chromatic aberration based on the specific lens used. This involves shifting and scaling the color channels to align them perfectly, effectively removing the color fringes. While highly effective for lateral CA, digital correction for longitudinal CA is more challenging due to its impact on focus.
Mirrors vs. Lenses
It is important to note that mirrors, unlike lenses, do not suffer from chromatic aberration. This is because mirrors reflect light rather than refracting it, and the angle of reflection is independent of the wavelength of light. This property makes reflective optical systems, such as Newtonian telescopes, inherently free from chromatic defects, offering a significant advantage in certain applications where color purity is critical.
Chromatic Aberration in Different Applications
The impact and correction of chromatic aberration vary significantly across different optical applications, each presenting unique challenges and solutions.
Photography
In photography, chromatic aberration is a common concern, especially with wide-angle and telephoto lenses, and at large apertures. It can degrade the sharpness and color fidelity of images, particularly at the edges of the frame. Modern photographic lenses often incorporate ED glass elements and complex multi-element designs to minimize CA. Additionally, in-camera and post-processing software corrections have become standard tools for photographers to eliminate residual color fringing.
Microscopy
Microscopes rely on highly corrected optics to achieve extreme magnification and resolution. Chromatic aberration in microscope objectives would severely limit the ability to discern fine details and accurate colors in specimens. Therefore, high-quality microscope objectives are almost always apochromatic or superachromatic, employing multiple lens elements and specialized glass to ensure precise color rendition and sharp focus across the visible spectrum. The precision required in microscopy makes chromatic correction paramount.
Telescopes/Astronomy
For astronomical observations, chromatic aberration in refracting telescopes (those using lenses) can be a major impediment to viewing celestial objects with clarity and accurate color. Early refracting telescopes suffered greatly from this, leading to the development of achromatic and apochromatic designs. Reflecting telescopes, which use mirrors, inherently avoid chromatic aberration, making them a preferred choice for many astronomical applications, especially large-aperture instruments.
Eyewear
Even in everyday eyewear, chromatic aberration can be a factor, particularly in high-index lenses or those with strong prescriptions. While typically less severe than in imaging optics, it can cause some individuals to perceive color fringes, especially when looking at bright lights or high-contrast scenes. Lens materials with higher Abbe numbers are preferred to minimize this effect, ensuring comfortable and clear vision.
Future Trends and Advanced Materials
The ongoing quest for perfect optical performance continues to drive innovation in materials science and lens design. Future developments in chromatic aberration correction are likely to focus on several key areas:
- Metamaterials and Metasurfaces: These engineered materials can manipulate light in ways conventional optics cannot, potentially offering ultrathin, flat lenses with unprecedented control over dispersion and aberration.
- Gradient-Index (GRIN) Lenses: Lenses with a continuously varying refractive index could offer new avenues for aberration correction, allowing for simpler designs with fewer elements.
- Advanced Glass Formulations: Research into new glass types with even lower dispersion properties (higher Abbe numbers) or unique partial dispersion characteristics will continue to enable more effective apochromatic and superachromatic designs.
- Computational Imaging: The integration of optical design with advanced computational algorithms could allow for real-time, software-based correction of aberrations, potentially reducing the complexity and cost of physical lens elements.
The combination of sophisticated optical engineering with cutting-edge materials and computational power promises a future where chromatic aberration is increasingly a problem of the past, leading to ever-sharper, color-accurate images across all scientific and artistic endeavors. The continuous evolution in understanding and correcting this fundamental optical challenge underscores the intricate relationship between physics, engineering, and visual perception.
